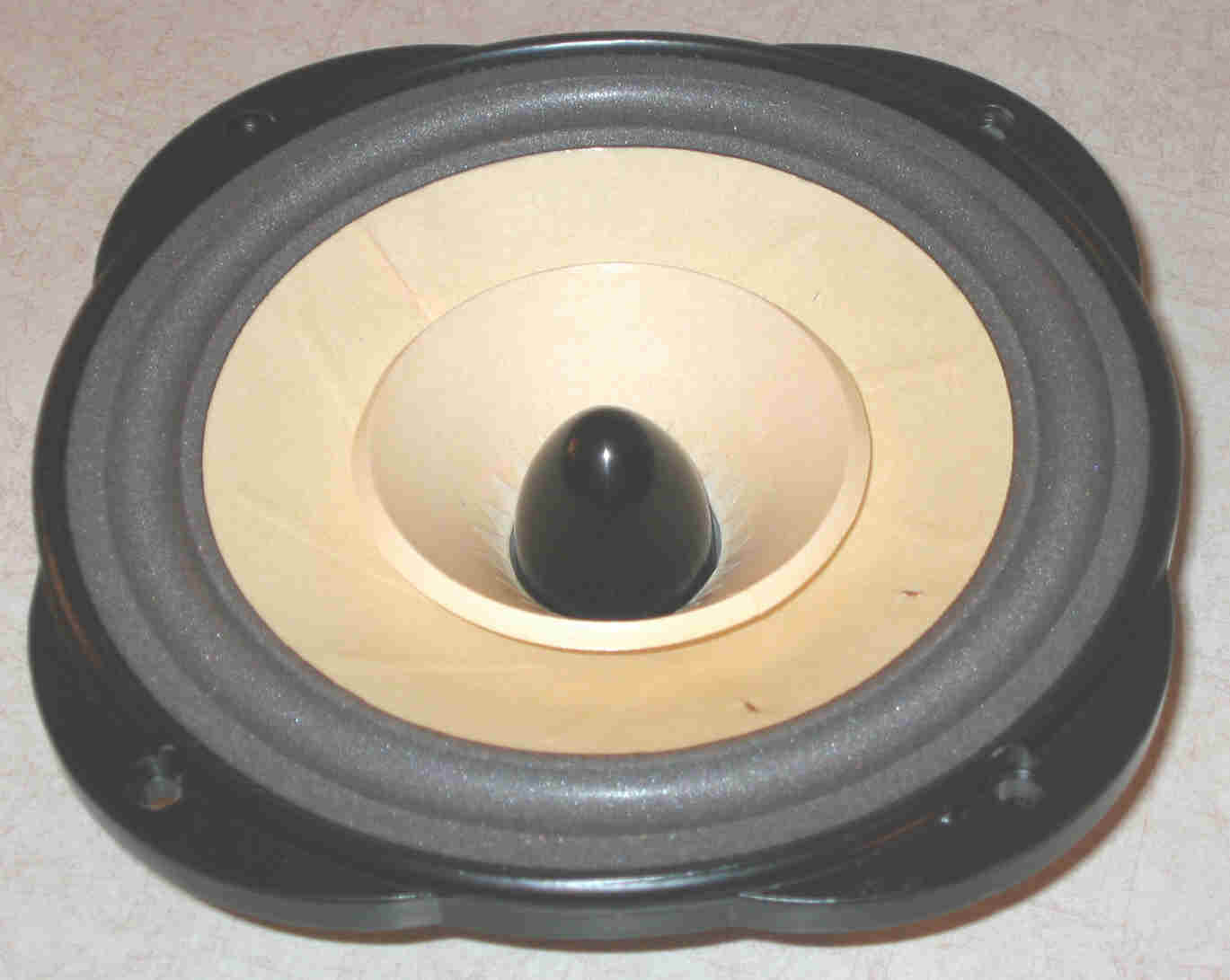

Lowther DX3 Driver Measurement Results

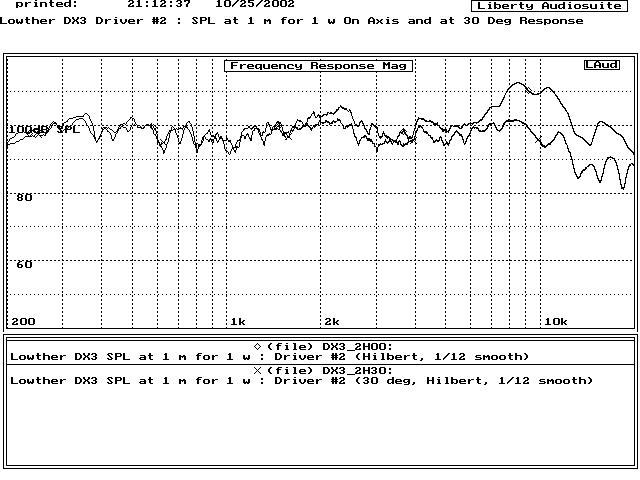

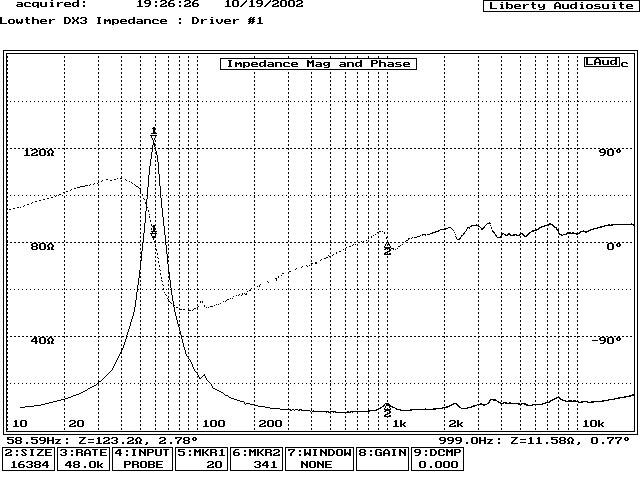

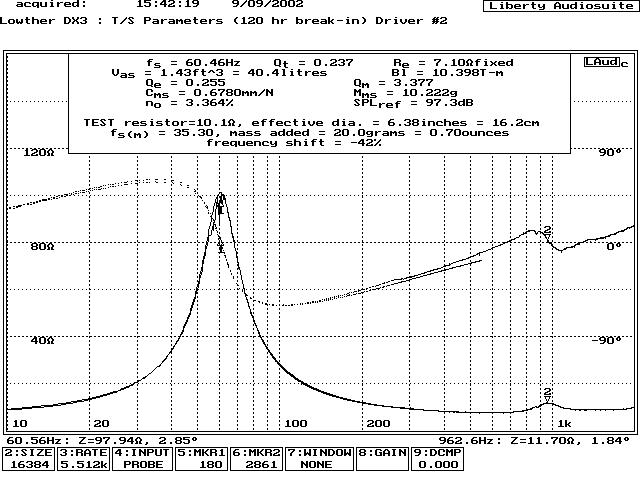

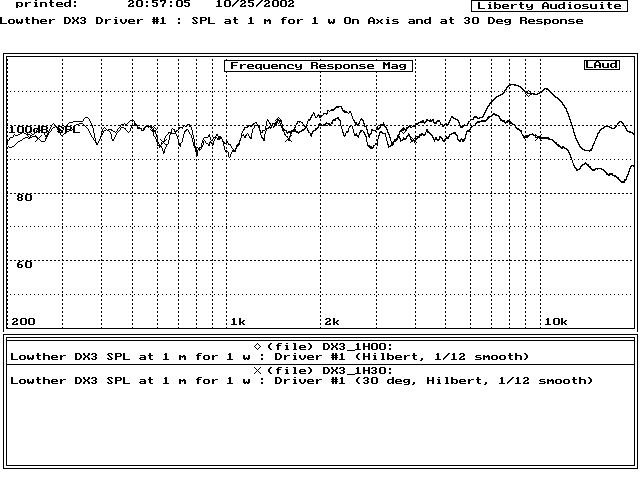

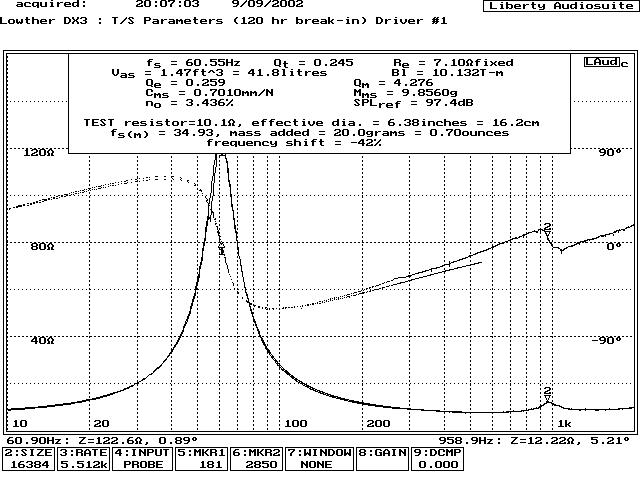

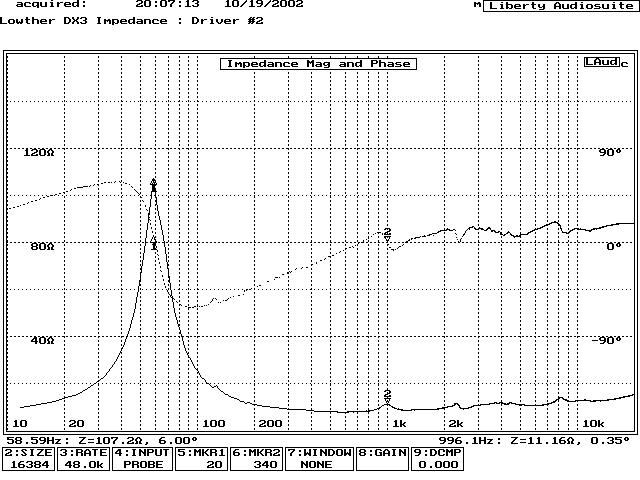

The following LAUD plots were made for two Lowther DX3 drivers. The data presented in the plots below includes the measured Thiele-Small parameters, the electrical impedances, and the SPL responses at 1 m for 1 watt input. The SPL plots include the response on axis and at 30 degrees off axis. Two plots are presents for each of the measurements corresponding to Driver #1 and Driver #2.
